Rate limiting

Rate limiting controls how many requests a gateway or an individual auth token accepts within a time window. The gateway enforces rate limits before any upstream call is made, so blocked requests never reach the AI provider.

How rate limiting works

The gateway uses a sliding-window dual-bucket algorithm. It maintains two time buckets: the current window and the previous window. On each request, the effective request count is calculated as:

effective_count = prev_bucket * (1 - elapsed / window_sec) + cur_bucket

Where elapsed is the number of seconds into the current window. This smooths out burst spikes at window boundaries without storing a full log of request timestamps.

Two independent limit levels exist:

  • Gateway-level rate limit — applies to the aggregate of all requests through the gateway.
  • Per-token rate limit — applies only to requests authenticated with a specific auth token.

Both levels are evaluated independently. A request can be blocked by the gateway-level limit even if the limit of the token has not been reached, and vice versa.

Rate limit configuration fields

Field Type Description
requests integer Maximum number of requests allowed in the window.
window_sec integer Length of the sliding window in seconds.

Response headers

When a request is rate limited, the gateway returns HTTP 429 with the following headers:

Header Description
X-RateLimit-Limit The configured request limit for the window.
X-RateLimit-Remaining Estimated requests remaining in the current window (0 when blocked).
Retry-After The window duration in seconds — the minimum time before retrying.

⭐ Example: 429 response body:

{
  "error": {
    "code": "rate_limited",
    "message": "Rate limit: 100/100 requests per 60s"
  }
}

The message is dynamic and states the observed count, the limit, and the window (Token rate limit: … when a per-token limit is the one exceeded). Branch on the stable code, never on the message text.

⚠️ Caution: Clients must implement backoff and retry logic. The Retry-After header gives the window duration in seconds — waiting at least this long before retrying is sufficient.

Configuring a gateway-level rate limit

The gateway-level rate limit applies to the aggregate of all requests through the gateway.

Before you begin, ensure the following conditions are met:

  • ☑ You have the tenant_admin or admin role.

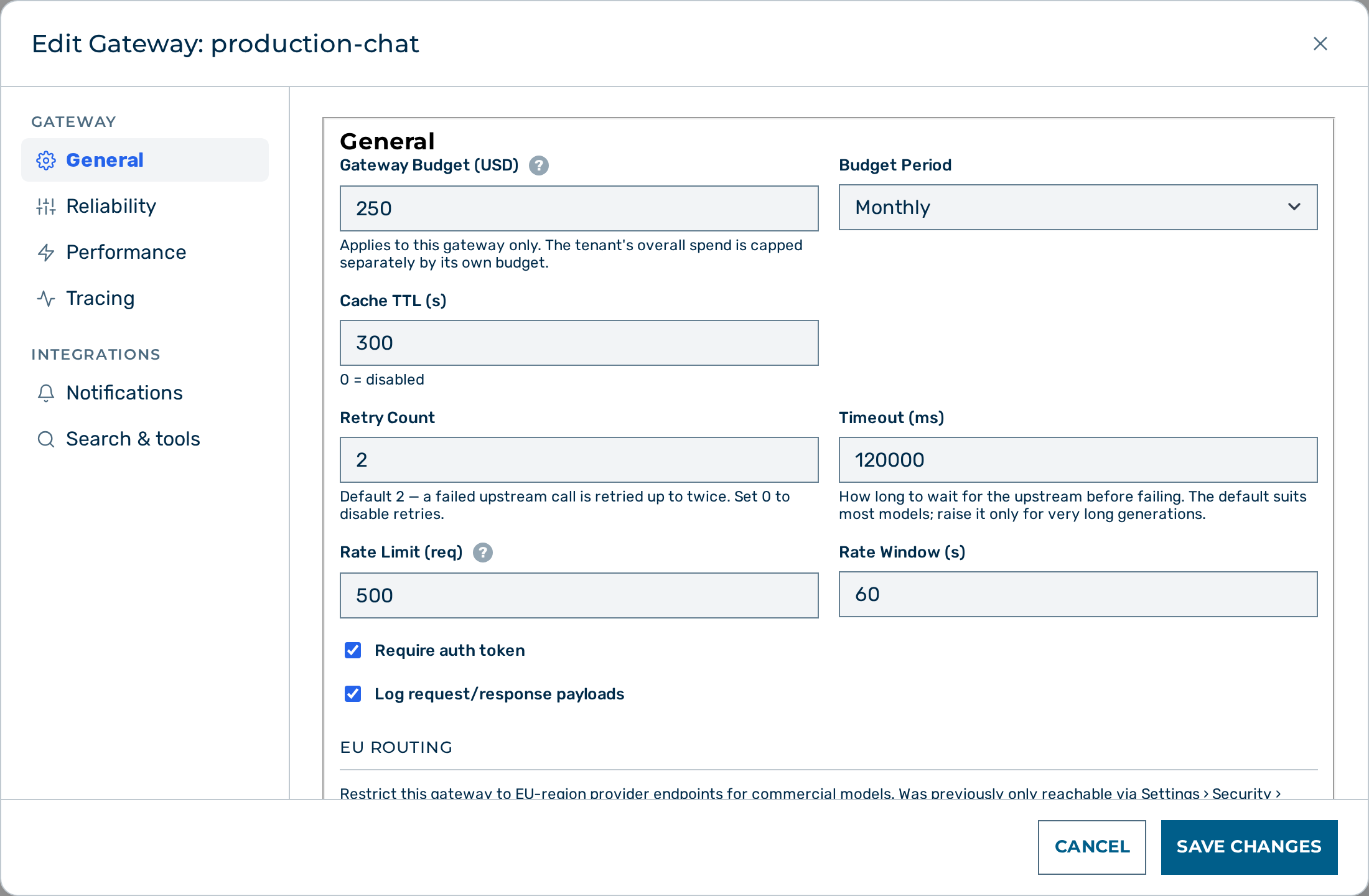

Rate limit fields in the Edit Gateway modal

Proceed as follows to configure a gateway-level rate limit:

  1. Open the Gateways view.
  2. Click on the Open → button of the gateway.
  3. The gateway detail view opens.
  4. Click on the Edit button in the Gateway card header.
  5. The Edit Gateway: modal opens.
  6. Enter the request count in the Rate Limit (req) text field.
  7. Enter the window duration in seconds in the Rate Window (s) text field.
  8. Click on the Save Changes button at the bottom of the modal.

-> The gateway enforces the new rate limit on every subsequent request.

A gateway has no rate limit until you set one, and an empty Rate Limit (req) field means exactly that — no limit, not a hidden default. Clearing the field and saving removes the limit.

💡 Note: The 100 requests per 60 seconds fallback mentioned in older documentation is not a default for an empty field. It applies only to a stored rate limit that is missing its request count — for example one written directly through the API — and never to a gateway that simply has no rate limit configured.

⚠️ Caution: An absent rate limit and a malformed one are handled differently. Absent means "no limit". A malformed stored rate-limit configuration (a value of the wrong shape, not merely a missing one) is not silently ignored: the gateway fails closed and refuses every request on that scope with configuration_error (HTTP 500) until the value is corrected. Fix the stored configuration to restore traffic.

Configuring a per-token rate limit

A per-token rate limit applies only to requests authenticated with a specific auth token. Attach it to a token at creation time.

Before you begin, ensure the following conditions are met:

  • ☑ You have the tenant_admin or admin role.

Rate limit fields in the New Token dialog

Proceed as follows to configure a per-token rate limit:

  1. Open the Users view.
  2. Click the open action icon on the user's row.
  3. The user detail view opens.
  4. Click on the + New Token button in the Tokens card.
  5. The Create Auth Token dialog opens.
  6. Enter the request count in the Rate limit (req, optional) text field.
  7. Enter the window duration in seconds in the Window (s) text field.
  8. Click on the Generate Token button.

-> The token rate limit applies to every request authenticated with the new token.

API

Rate limits are part of the gateway config object and the token creation request. See Tenants & Gateways API and Users & Tokens API for examples.
