Guardrails

💡 Note: This page is the configuration reference for building a guardrail pipeline — create, edit, order, and manage guardrails. For the concept (tiers, verdict lifecycle, targets), see Guardrails. For the guardrails overview and the comparison table that helps you pick one, see Data protection and compliance.

Myra AI Workspace evaluates every request and response through a configurable guardrail pipeline. Each guardrail inspects message content and returns a verdict — block, scrub, or flag — that controls how the gateway handles the traffic.

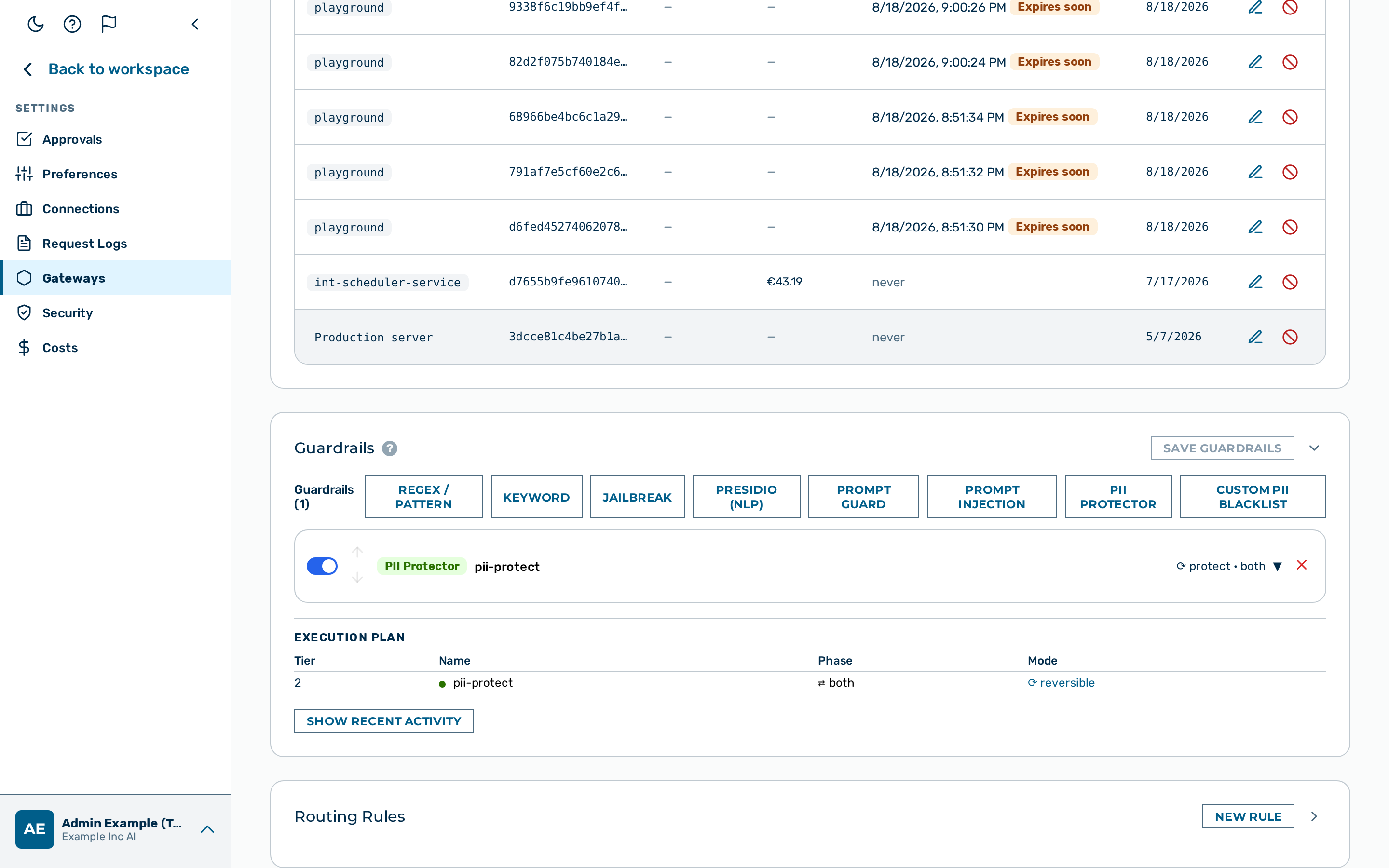

Screenshot: Guardrail Builder in the admin UI Guardrail Builder

Two-tier architecture

Guardrails are grouped into two tiers based on where they execute and how fast they run.

Tier Guardrail types Execution Latency
Tier 1 regex, keyword, jailbreak, json_schema, contains_code, gibberish, language, custom_pii In-process Sub-millisecond
Tier 2 presidio, prompt_guard, prompt_injection, pii_protector Sidecar HTTP call Milliseconds

All Tier 1 guardrails run before any Tier 2 guardrail. Within the same tier, guardrails run in the order they appear in the guardrails array of the gateway configuration.

Execution order and verdict behaviour

The pipeline processes guardrails sequentially.

Verdict Effect on pipeline
block The request is denied immediately. No further guardrails run.
scrub Matched content is replaced in the body. The pipeline continues.
flag The match is recorded in the log entry. The pipeline continues.

A block verdict from any single guardrail stops the entire pipeline. scrub and flag verdicts are non-terminal — the remaining guardrails still run after the match is recorded or the content is redacted.

The diagram below shows the path of a request through both tiers. A block verdict is terminal and returns a structured error; scrub and flag keep the request on the solid path toward the provider.

flowchart TD
    REQ([Request]) --> T1G1
    subgraph TIER1 [Tier 1 — in-process, sub-millisecond]
        direction TB
        T1G1[Guardrail 1] --> T1G2[Guardrail 2] --> T1GN[Guardrail n]
    end
    T1GN --> T2G1
    subgraph TIER2 [Tier 2 — sidecar, milliseconds]
        direction TB
        T2G1[Guardrail 1] --> T2GN[Guardrail n]
    end
    T2GN --> PROV([Provider])

    T1G1 -. block .-> STOP
    T1G2 -. block .-> STOP
    T1GN -. block .-> STOP
    T2G1 -. block .-> STOP
    T2GN -. block .-> STOP
    STOP([Stop — structured error returned])

On the solid path, each guardrail returning pass, scrub, or flag hands the request to the next guardrail; only block diverts to the terminal error.

Targets

Each guardrail declares which traffic direction it inspects.

Target Description
request Inspect the outbound request body (default)
response Inspect the inbound model response body
both Inspect both the request and the response

Verdict actions

block

The request is denied. The caller receives a synthetic HTTP 200 response containing an assistant-role message that describes the reason for blocking. No upstream model call is made.

⭐ Example: Block message:

Request blocked by content policy (block-pci): cc

The reason after the colon is the raw pattern or category name (cc here). Only Llama-Guard safety codes (S1–S14) are expanded to a human-readable label; a regex or keyword pattern name is carried through verbatim.

For streaming requests, the synthetic block message is delivered as SSE events using the same format the model uses. Streaming clients do not need special handling.

scrub

Matched content is replaced with a placeholder string before the body is forwarded. The default placeholder is [REDACTED]. The regex and keyword guardrails allow a custom value via scrub_placeholder.

A scrub is destructive unless the guardrail performing it is the PII Protector. The word names one verdict but two different operations, and only one of them is reversible:

Guardrail What replaces the value Restored?
PII Protector An opaque token derived from the value itself, so the same value yields the same token throughout a conversation Yes — put back in the response before it reaches the client, and selectable in the pre-send masking preview
Custom PII Blacklist An opaque positional token ([MYRA-CUSTOM:…]) Yes in the response — but deliberately not user-selectable in the masking preview: the list is administrator-defined, so a user may not lift it
NLP PII Detector A static label such as <PERSON> No
Regex · Keyword The scrub_placeholder value, [REDACTED] by default No

An irreversible scrub destroys the value for the whole turn: the model answers about the placeholder, that answer is what is stored, and nothing can recover the original afterwards. Choose it when the provider must never see the data and the answer does not need to refer to it; choose the PII Protector when the answer does. The Guardrail Builder labels the irreversible ones destructive in its execution plan so the two are distinguishable on the one screen that lists them together.

⚠️ Caution: Only presidio, regex, keyword, pii_protector and custom_pii rewrite the body. Every other guardrail detects but does not rewrite, so a configured action: "scrub" is not performed — each applies its own fallback instead: jailbreak, prompt_guard, json_schema, contains_code, gibberish and language treat it as flag, and prompt_injection treats it as block. The Guardrail Builder does not offer scrub on the cards it renders for those types, and its execution plan shows the action that will actually be applied; a value already stored stays visible and selectable so an existing configuration can still be saved.

flag

The match is recorded in the gateway log entry for the request. The body is not modified and the request is not blocked.

Tier 2 availability and fail_open

Tier 2 guardrails make an HTTP call to a locally hosted sidecar service running within Myra's certified infrastructure. Prompt content never leaves the Myra perimeter. When the sidecar is unavailable, the fail_open setting controls what happens.

fail_open Sidecar unavailable
true (default) Request passes through as if no match occurred
false Request is blocked

💡 Note: prompt_injection is the exception: it defaults to fail-closed (fail_open: false), so a sidecar outage blocks the request rather than letting it through. The fail_open: true default in the table above applies to the other Tier 2 detectors.

💡 Note: fail_open also governs an in-process (Tier 1) detector that errors — a detector crash or an unknown detector type resolves through the same fail_open setting, not only a Tier 2 sidecar outage.

⚠️ Caution: Set fail_open: false when the sidecar is a hard dependency for your security policy. With the default fail_open: true, a sidecar outage allows all traffic through uninspected.

Log fields

Every guardrail that runs produces structured output. The following fields are set on the gateway log entry for the request.

Field Type Description
blocked boolean true if any guardrail blocked the request
blocked_by string Name of the guardrail that issued the block verdict
block_reason string Pattern name or category code that triggered the block
detectors_fired array Names of all guardrails that returned a block, scrub, or flag verdict. A detector that only errored (a degraded verdict) is not listed here.

Creating a guardrail

Guardrails are configured using the visual Guardrail Builder, which is available in two places:

  • Existing gateway — open the gateway detail page, then scroll down to the Guardrails card.
  • New gateway — the Guardrail Builder is embedded at the bottom of the New Gateway modal.

Screenshot: Guardrail Builder showing guardrail type buttons Guardrail Builder — type buttons

Proceed as follows to create a guardrail:

  1. Open the gateway detail page or the New Gateway modal.
  2. The Guardrail Builder appears at the bottom of the page or modal.
  3. Click on the button for the guardrail type you want to add:
  4. + Regex / Pattern — named pattern library and custom regex
  5. + Keyword — exact string matching
  6. + Jailbreak — zero-config detector pre-loaded with 18 known attack phrases
  7. + Presidio (NLP) — NLP-based PII detection
  8. + Prompt Guard — semantic safety classification (Llama Guard 3, locally hosted)
  9. + Prompt Injection — prompt-injection classification (Llama Prompt Guard 2, locally hosted; fail-closed by default)
  10. + PII Protector — reversible PII tokenisation
  11. + Custom PII Blacklist — reversible masking of admin-defined keywords (client names, codenames, surnames)
  12. A collapsed guardrail card appears at the bottom of the list.
  13. Click on the guardrail card to expand it.
  14. Enter a name in the Name text field.
  15. Select the action from the Action drop-down list: block, scrub (not available on Jailbreak or Prompt Guard), or flag.

💡 Note: The Custom PII Blacklist guardrail type has no action selector. Masking is always active and cannot be configured to block or flag. 6. Select the target from the Target drop-down list: request (default), response, or both. 7. Configure any type-specific fields (patterns, keywords, entities, etc.). See the relevant guardrail type page for field details. 8. If required, use the ▲▼ arrows on the left side of each guardrail card to reorder guardrails within the list. Order matters within a tier — Tier 1 always runs before Tier 2, but within the same tier execution follows list order. 9. Click on the Save Guardrails button in the Guardrails card header (on an existing gateway), or complete the rest of the form and click on Create Gateway (in the New Gateway modal).

-> The guardrail is saved. The Execution plan table below the guardrail list updates to show the new guardrail in execution order.

Editing a guardrail

Proceed as follows to edit a guardrail:

  1. Open the gateway detail page.
  2. The Guardrail Builder shows the configured guardrail list.
  3. Click on the guardrail card you want to edit.
  4. The card expands to show the configuration fields.
  5. Update the required fields.
  6. Click on the Save Guardrails button.

-> The updated guardrail configuration is saved.

Deleting a guardrail

Proceed as follows to delete a guardrail:

  1. Open the gateway detail page.
  2. The Guardrail Builder shows the configured guardrail list.
  3. Click on the × button on the right side of the guardrail card header you want to remove.
  4. The card is removed from the list immediately.
  5. Click on the Save Guardrails button.

-> The guardrail is deleted. The Execution plan table updates to reflect the removal.

API

Guardrails are configurable via the Admin API as the guardrails array in the gateway configuration. See Tenants & Gateways API and the Gateway Configuration Reference for details.

Guardrail types

Type Tier Description
regex 1 In-process regex and named pattern matching
keyword 1 In-process exact keyword matching
jailbreak 1 Pre-configured jailbreak and prompt-injection detector — zero configuration required
json_schema 1 Validates model responses against a declared JSON schema — enforces structured output
contains_code 1 Detects source code in requests or responses
gibberish 1 Detects low-quality or incoherent model responses using entropy and vocabulary heuristics
language 1 Detects the dominant writing system of request or response text — permits or blocks by script
custom_pii 1 Reversible masking of admin-defined keywords — client names, codenames, and surnames masked before reaching the model
presidio 2 NLP-based PII detection — locally hosted within Myra's certified infrastructure
prompt_guard 2 Safety classification via Llama Guard 3 — locally hosted within Myra's certified infrastructure
prompt_injection 2 Prompt-injection classification via Llama Prompt Guard 2 — multilingual, scans requests and tool results; fail-closed by default
pii_protector 2 Reversible PII tokenisation — real values restored in response
